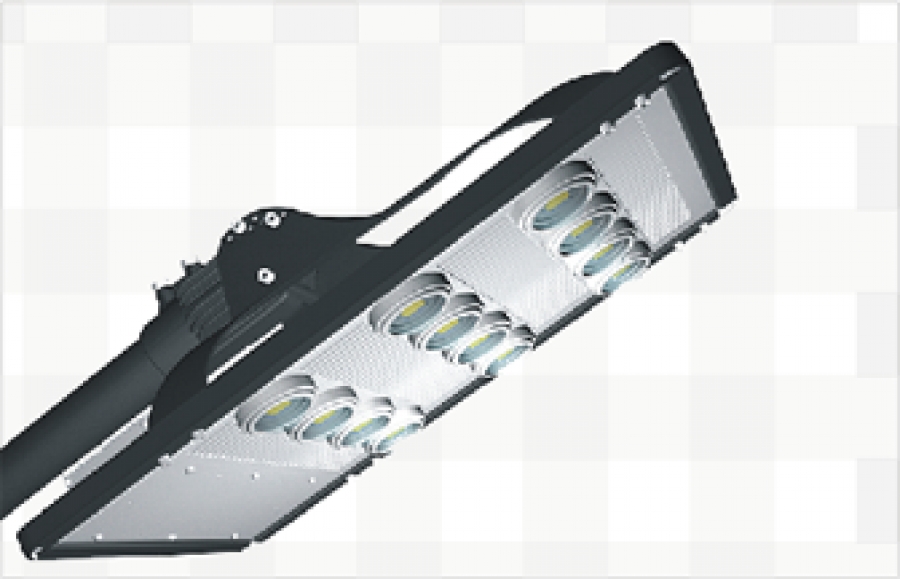

Product Code		NLM-135
LED Power Consumption		122 W
Total Power Consumption		135 + 10% W
Power Efficiency		>91%
LED Efficiency		110-140lm/w
Lamp Rated Total Luminous Flux		10800lm + 10% (warm white)
		12500lm + 10% (natural white)
		12150lm + 10% (cool white)
Lamp Rated Luminous Efficiency		80-105 lm/w
Average Illumination & Effective Area	6M Height	100Lux, 24M x 6M
	8M Height	56Lux, 34M x 8M
	10M Height	35 Lux, 40M x 10M
	12M Height	24 lux, 50M x 12M
Color Rendering Index (CRI)		70 +/- 5
Color Temperature		2700-3700K (warm white)
		3700-5300K (Natural White)
		5300-7040K (Cool White)
Beam Angle		135^o x 75^o
Light Distribution Curve		Asymmetric (Bat Wing)
Input Voltage		AC 86~264V
Work Frequency		50/60Hz
Power Factor		>0.95
Light Body and Lampshade Material		Allumunium Alloy and Glass
Weight		12.5 +/- 5%kg
Work Environment		-40C ~ +50C ; 10%~90%RH
Storage Temperature		-40C ~ +80C
Working Lifetime		>50,000hrs
IP Rating		IP65
Package Size		735 x 440 x 325 mm

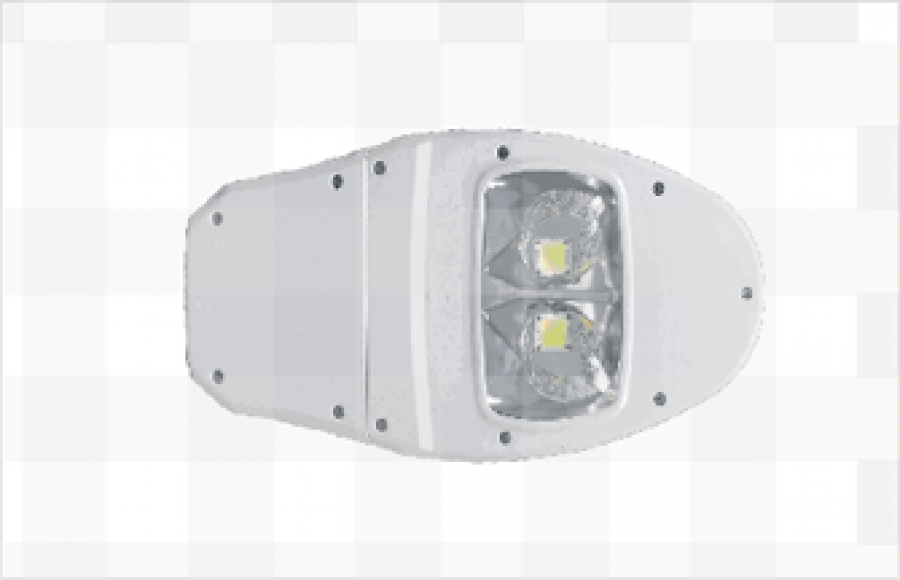

Product Code	NKN-150
Item	Min	Typical	Max
Rated Current	-	2.1 A	2.2 A
Rated Voltage	28V	30V	36V
Warm White Color Temperature	2700K	3200K	3900K
Pure White Color Temperature	4000K	5500K	6000K
Cool White Color Temperature	6000K	6500K	7000K
Normal Work Junction Temperature	-	85C	105C
LED Chip QTY	-	70Pcs	-
LED Efficiency	70-80LM/W	80-90LM/W	110-120LM/w
LED Chip	Bridge Lux

Input Voltage		AC85V~265V
Frequency Range		50Hz~60Hz
Total Harmonic Distortion		<9%
Power Factor		>0.98
Power Efficiency		>87 %
LED Working Voltage		DC30~36V
LED Quantity		2 PCS
LED Consumption		136 W
System Consumption		156 W
LED Luminous Efficiency		80 Lm / W
LED Initial Flux		12000 Lm
Lamp's Efficiency		>91%
Average Illuminance	8 M	32 Lux
	10 M	21 Lux
Illuminance Area	8 M	14M
	10 M	27M
Illuminance Uniformity		>0.6
Color Temperature		See above LED Table
Color Rendering Index		Ra>75
Light Distribution		Symmetric / Rectangular Beam
Light Design		LED + reflectors with twice light distribution
LED Junction Temperature		<80C
Working Temperature		-40C ~ +55C
Storage Temperature		-25C ~ +65C (25C Best)
IP Grade		IP65
Net Weight		12.5 kg
Working Life-Span		50000 H
Power Line		1 x 3mm2 three cores line
Wire Connect	Brown	L
	Blue	N
	Yellow/Green	G
(The Color of the Lamp Shell)		white

(W,L,H) The Size of the Radiator Package Size	82 x 39.5 x 24 cm
The Weight of the Radiator after Packaging	14.3 kg

Product Code	NKN-100
Item	Min	Typical	Max
Power	-	50W	60W
Rated Current	-	1.6A	1.7A
Rated Voltage	28V	30V	36V
Warm White Color Temperature	2700K	3200K	3900K
Pure White Color Temperature	4000K	5500K	6000K
Cool White Color Temperature	6000K	6500K	7000K
Normal Work Junction Temperature	-	85C	105C
LED Chip QTY	-	50Pcs	-
LED Efficiency	70-80LM/W	80-90LM/W	110-120LM/w
LED Chip	Bridge Lux

(W,L,H) The Size of the Radiator Package Size	70.5 x 35 x 20.5 cm
The Weight of the Radiator after Packaging	11.2 kg

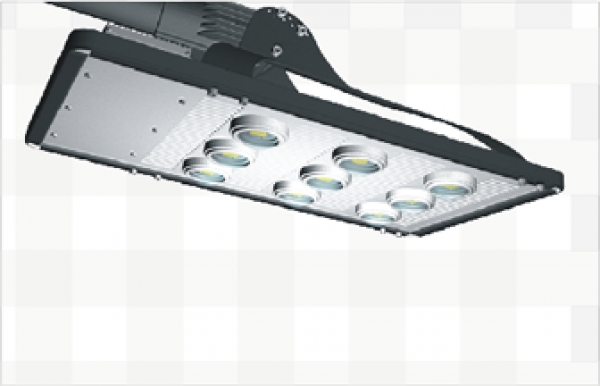

Product Code		NLM-100
LED Power Consumption		90 W
Total Power Consumption		100W + 10%
Power Efficiency		>90%
LED Efficiency		110-140lm/w
Lamp Rated Total Luminous Flux		8000lm + 10% (warm white)
		9000lm + 10% (natural white)
		9000lm + 10% (cool white)
Lamp Rated Luminous Efficiency		80-110 lm/w
Average Illumination & Effective Area	6M Height	66Lux, 24M x 6M
	8M Height	38Lux, 34M x 8M
	10M Height	24 Lux, 40M x 10M
	12M Height	16 lux, 50M x 12M
Color Rendering Index (CRI)		70 +/- 5
Color Temperature		2700-3700K (warm white)
		3700-5300K (Natural White)
		5300-7040K (Cool White)
Beam Angle		135^o x 75^o
Light Distribution Curve		Asymmetric (Bat Wing)
Input Voltage		AC 86~264V
Work Frequency		50/60Hz
Power Factor		>0.95
Light Body and Lampshade Material		Allumunium Alloy and Glass
Weight		9.2 +/- 5%kg
Work Environment		-40C ~ +50C ; 10%~90%RH
Storage Temperature		-40C ~ +80C
Working Lifetime		>50,000hrs
IP Rating		IP65
Package Size		735x440x325mm

Kode	NA10CD
Description	P10 RGB Full Color Videotron
Dimension
Active Display Size (H x W x D)	1920 x 3840 x 150 mm
Approx. Casing Size	1920 x 3840 mm
Display Characteristic
Pixel Pitch	10 mm
Screen Resolution (ver x hor)	192 x 384 pixel
Pixels per sqm	10,000 pixels
Total Pixel	73,728 pixels
Aspect Ratio	1 : 2
Led Structure	1R, 1G, 1B
Output Color	1,073 million colors
Led Lifetime	100,000 hours
Brightness	> 6,000 nits
Grey Scale (Linear)	256 levels per color
Horizontal viewing angle	+65^o ~ -65^o
Vertical viewing angle	+30^o ~ -30^o
Ingress Protection	IP 65(front), IP 43(back)
Cabinet Construction	Cold rolled armor plate
Working Temperature	-30oC ~ +60oC
Ventilation	110 ~ 240 VAC Fan
Viewing Distance	> 20m
Cabinet Dimension (H x W x D)	960 x 960 x 150 mm
Cabinet Pixel Configuration	96 x 96 pixels
Others
Maximum Power Usage	12,000 watts
Approx. Weight	500 kgs
Multimedia Data Format	MPG, AVI, WMV, RM, etc
Data Interconnection	Cat 5E UTP or Fiber Optic
Product Certification	ISO 9001 : 2008, ISO 14001 : 2004

Kode	NA20CD
Description	P20 RGB Full Color Videotron
Dimension
Active Display Size (H x W x D)	3840 x 7680 x 150 mm
Approx. Casing Size	3840 x 7680 mm
Display Characteristic
Pixel Pitch	20 mm
Screen Resolution (ver x hor)	192 x 384 pixel
Pixels per sqm	2,500 pixels
Total Pixel	73,728 pixels
Aspect Ratio	1 : 2
Led Structure	2R, 1G, 1B
Output Color	1,073 million colors
Led Lifetime	100,000 hours
Brightness	> 6,000 nits
Grey Scale (Linear)	256 levels per color
Horizontal viewing angle	+65^o ~ -65^o
Vertical viewing angle	+30^o ~ -30^o
Ingress Protection	IP 65(front), IP 43(back)
Cabinet Construction	Cold rolled armor plate
Working Temperature	-30^oC ~ +60^oC
Ventilation	110 ~ 240 VAC Fan
Viewing Distance	> 20m
Cabinet Dimension (H x W x D)	960 x 1280 x 150 mm
Cabinet Pixel Configuration	48 x 64 pixels
Others
Maximum Power Usage	28,000 watts
Approx. Weight	1600 kgs
Multimedia Data Format	MPG, AVI, WMV, RM, etc
Data Interconnection	Cat 5E UTP or Fiber Optic
Product Certification	ISO 9001 : 2008, ISO 14001 : 2004

Kode	NA16CD
Description	P16 RGB Full Color Videotron
Dimension
Active Display Size (H x W)	4096 x 8192 mm
Approx. Casing Size (H x W x D)	4096 x 8192 x 150 mm
Display Characteristic
Pixel Pitch	16 mm
Screen Resolution (ver x hor)	256 x 512 pixel
Pixels per sqm	3,906 pixels
Total Pixel	131,072 pixels
Aspect Ratio	1 : 2
Led Structure	1R, 1G, 1B
Output Color	1,073 million colors
Led Lifetime	100,000 hours
Brightness	> 6,000 nits
Grey Scale (Linear)	256 levels per color
Horizontal viewing angle	+65^o ~ -65^o
Vertical viewing angle	+30^o ~ -30^o
Ingress Protection	IP 65(front), IP 43(back)
Cabinet Construction	Cold rolled armor plate
Working Temperature	-30^oC ~ +60^oC
Ventilation	110 ~ 240 VAC Fan
Viewing Distance	> 20m
Cabinet Dimension (H x W x D)	1024 x 1024 x 150 mm
Cabinet Pixel Configuration	64 x 64 pixels
Others
Maximum Power Usage	38,000 watts
Approx. Weight	1600 kgs
Multimedia Data Format	MPG, AVI, WMV, RM, etc
Data Interconnection	Cat 5E UTP or Fiber Optic
Product Certification	ISO 9001 : 2008, ISO 14001 : 2004

Kode	NA125CD
Description	P12.5 RGB Full Color Videotron
Dimension
Active Display Size (H x W)	3200 x 6400 mm
Approx. Casing Size (H x W x D)	3200 x 6400 x 150 mm
Display Characteristic
Pixel Pitch	12.5 mm
Screen Resolution (ver x hor)	256 x 512 pixel
Pixels per sqm	6,400 pixels
Total Pixel	131,072 pixels
Aspect Ratio	1 : 2
Led Structure	2R, 1G, 1B
Output Color	1,073 million colors
Led Lifetime	100,000 hours
Brightness	> 6,000 nits
Grey Scale (Linear)	1024 levels per color
Horizontal viewing angle	+65^o ~ -65^o
Vertical viewing angle	+30^o ~ -30^o
Ingress Protection	IP 65(front), IP 43(back)
Cabinet Construction	Cold rolled armor plate
Working Temperature	-30^oC ~ +60^oC
Ventilation	110 ~ 240 VAC Fan
Viewing Distance	> 20m
Cabinet Dimension (H x W x D)	800 x 800 x 150 mm
Cabinet Pixel Configuration	64 x 64 pixels
Others
Maximum Power Usage	22,000 watts
Approx. Weight	1200 kgs
Multimedia Data Format	MPG, AVI, WMV, RM, etc
Data Interconnection	Cat 5E UTP or Fiber Optic
Product Certification	ISO 9001 : 2008, ISO 14001 : 2004

Kode	NA08CD
Description	P8 RGB Full Color Videotron
Dimension
Active Display Size (H x W x D)	2304 x 3072 x 150 mm
Approx. Casing Size	2304 x 3072 mm
Display Characteristic
Pixel Pitch	8 mm
Screen Resolution (ver x hor)	288 x 384 pixel
Pixels per sqm	15,625 pixels
Total Pixel	110,592 pixels
Aspect Ratio	3 : 4
Led Structure	SMD 3 in 1
Output Color	1,073 million colors
Led Lifetime	100,000 hours
Brightness	> 1,500 nits
Grey Scale (Linear)	1024 levels per color
Horizontal viewing angle	+65^o ~ -65^o
Vertical viewing angle	+30^o ~ -30^o
Ingress Protection	IP 65(front), IP 43(back)
Cabinet Construction	Cold rolled armor plate
Working Temperature	-30^oC ~ +60^oC
Ventilation	110 ~ 240 VAC Fan
Viewing Distance	> 20m
Cabinet Dimension (H x W x D)	768 x 1024 x 150 mm
Cabinet Pixel Configuration	96 x 128 pixels
Others
Maximum Power Usage	4,000 watts
Approx. Weight	350 kgs
Multimedia Data Format	MPG, AVI, WMV, RM, etc
Data Interconnection	Cat 5E UTP or Fiber Optic
Product Certification	ISO 9001 : 2008, ISO 14001 : 2004

Kode	NA06CD
Description	P6 RGB Full Color Videotron
Dimension
Active Display Size (H x W x D)	2304 x 3072 x 150 mm
Approx. Casing Size	2304 x 3072 mm
Display Characteristic
Pixel Pitch	6 mm
Screen Resolution (ver x hor)	384 x 512 pixel
Pixels per sqm	27,777 pixels
Total Pixel	196,608 pixels
Aspect Ratio	3 : 4
Led Structure	SMD 3 in 1
Output Color	1,073 million colors
Led Lifetime	100,000 hours
Brightness	> 1,500 nits
Grey Scale (Linear)	1024 levels per color
Horizontal viewing angle	+65^o ~ -65^o
Vertical viewing angle	+30^o ~ -30^o
Ingress Protection	IP 65(front), IP 43(back)
Cabinet Construction	Cold rolled armor plate
Working Temperature	-30oC ~ +60oC
Ventilation	110 ~ 240 VAC Fan
Viewing Distance	> 20m
Cabinet Dimension (H x W x D)	576 x 768 x 150 mm
Cabinet Pixel Configuration	96 x 128 pixels
Others
Maximum Power Usage	7,000 watts
Approx. Weight	400 kgs
Multimedia Data Format	MPG, AVI, WMV, RM, etc
Data Interconnection	Cat 5E UTP or Fiber Optic
Product Certification	ISO 9001 : 2008, ISO 14001 : 2004

Client Login

Contact Us

Led Channel Letter

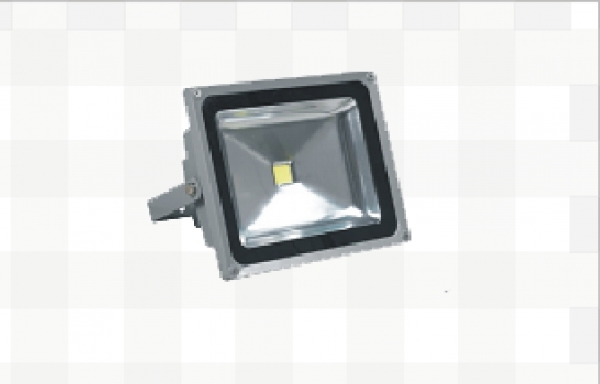

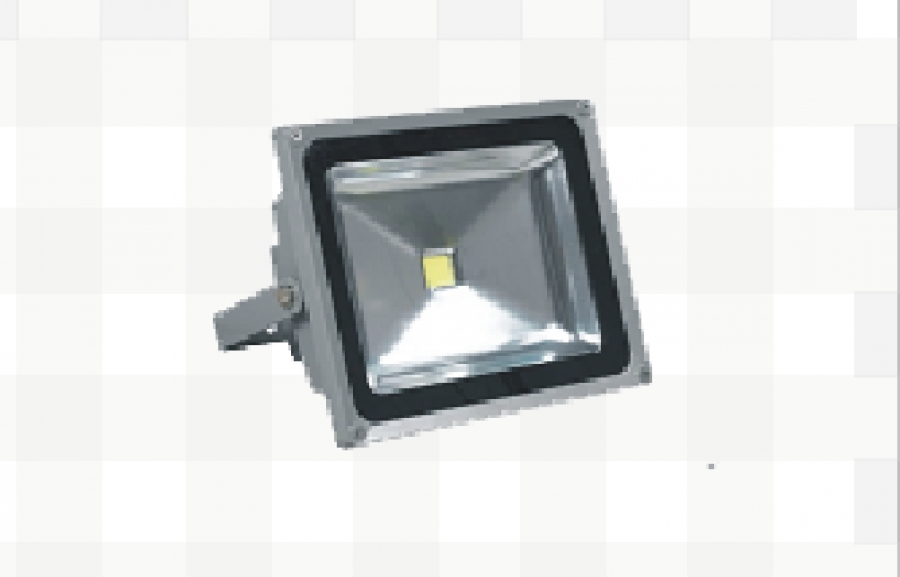

Led Flood Light

Led Back Light

LED

Led Flood Light

Lampu PJU

Lampu PJU

Lampu PJU

Lampu PJU

Stock Information

Flight Information

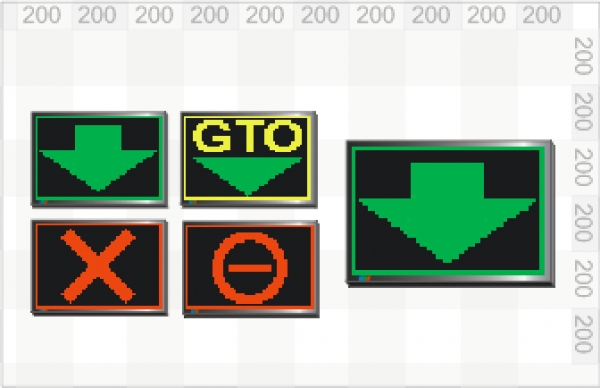

Cross Arrow

Cross Arrow

Rambu

Variable Message

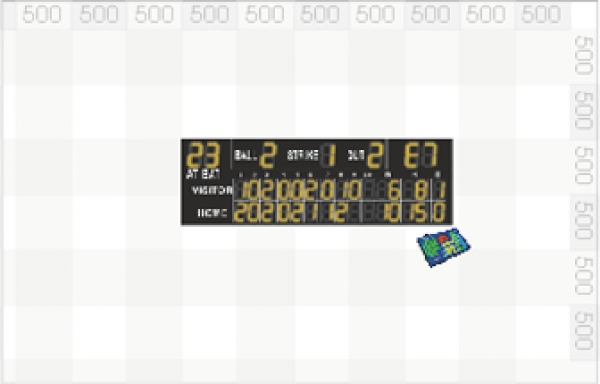

Scoreboard Baseball

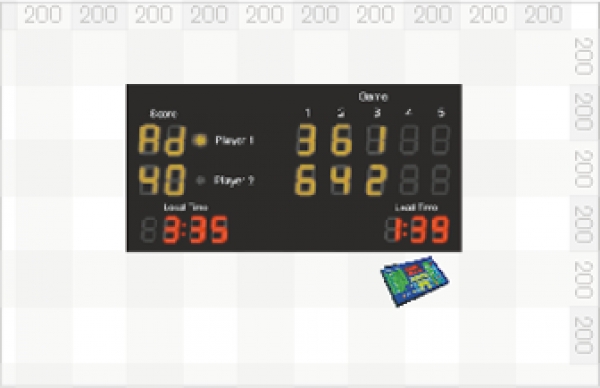

Scoreboard Tennis

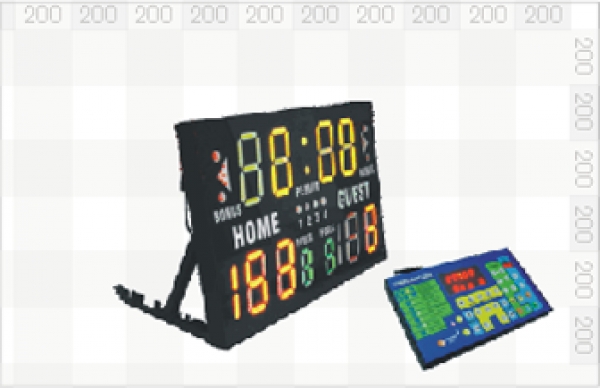

Scoreboard Basketball

Scoreboard Football (Standard)

Multi Function Scoreboard (Large)

Multi Function Scoreboard (Small)

Multi Function Scoreboard (Medium)

Football Scoreboard (Wider)

Analog Series Size Large

Analog Series Size Small

Digital Clock World

Digital Clock

Digital Clock

Digital Clock

Digital Clock

Digital Clock

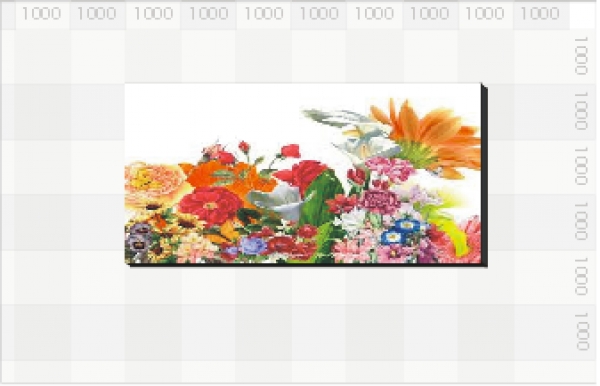

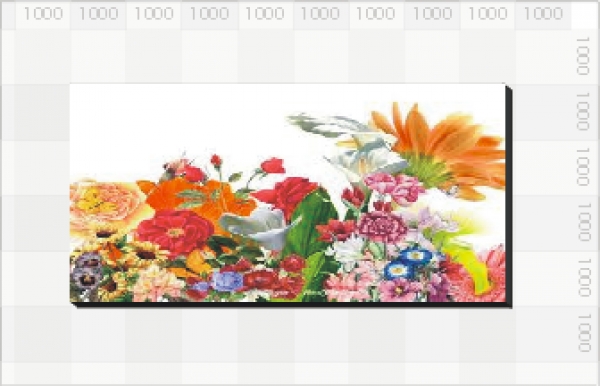

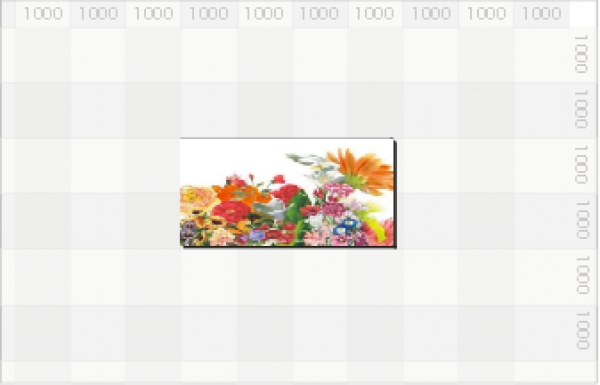

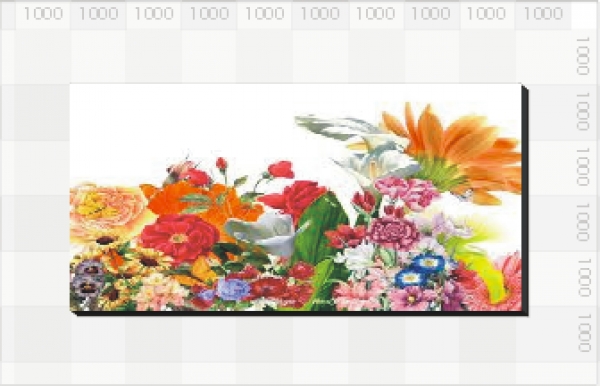

Videotron P10

Videotron P20

Videotron P16

Videotron P12.5

Videotron P8

Videotron P6

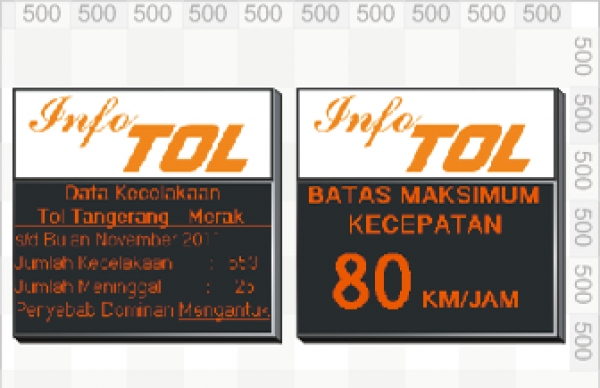

New Product : Running Text (Bi Color) VMS System

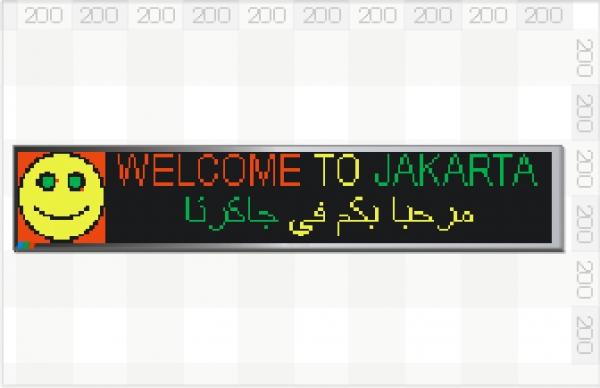

Running Text (Bi Color) Size Medium

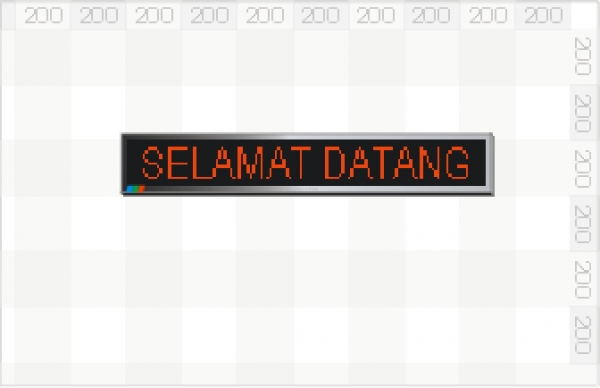

Running Text (Bi Color) Size Small

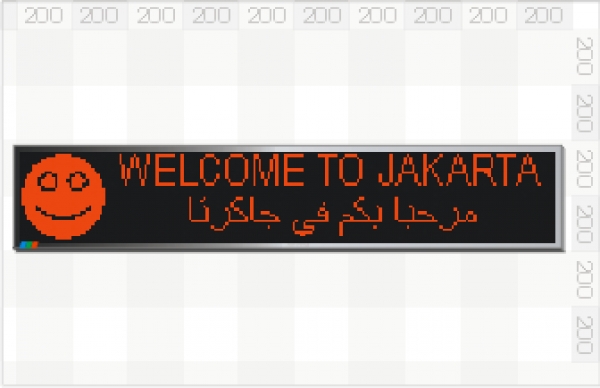

Running Text (Single Color) Size Large

Running Text (Single Color) Size Medium

Running Text (Single Color) Size Small
